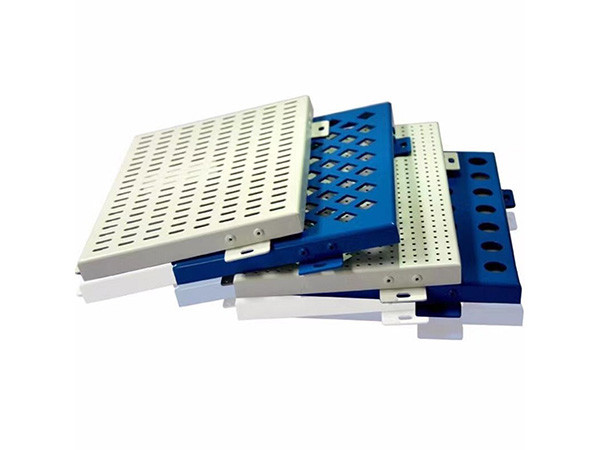

Perforated panels Aluminium Cladding Panels are accepted for personal customization and fabrication

Aluminium Cladding Panels,Aluminium Perforated Panels,Alumium panels. aluminium decorative panels,aluminium laser cut panels Aluminium solid panel

EMAIL

Perforted Aluminium Cladding Panels,Aluminium Perforated Panels,Alumium panels. aluminium decorative panels,aluminium laser cut panels Aluminium solid panel

  • Solid Aluminium Panel

  • Solid Aluminium Panel is a non-combustible single layer aluminium panel. It is pre-finished with nice color and pre-fabricated into cassettes as per required shapes. It meets high façade cladding standards in most countries regarding to fireproof and material strength.

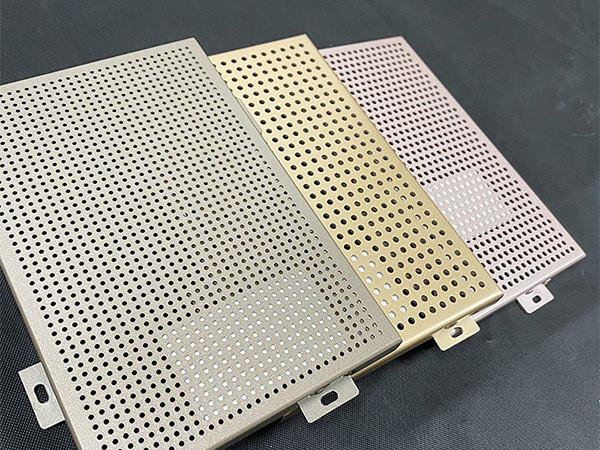

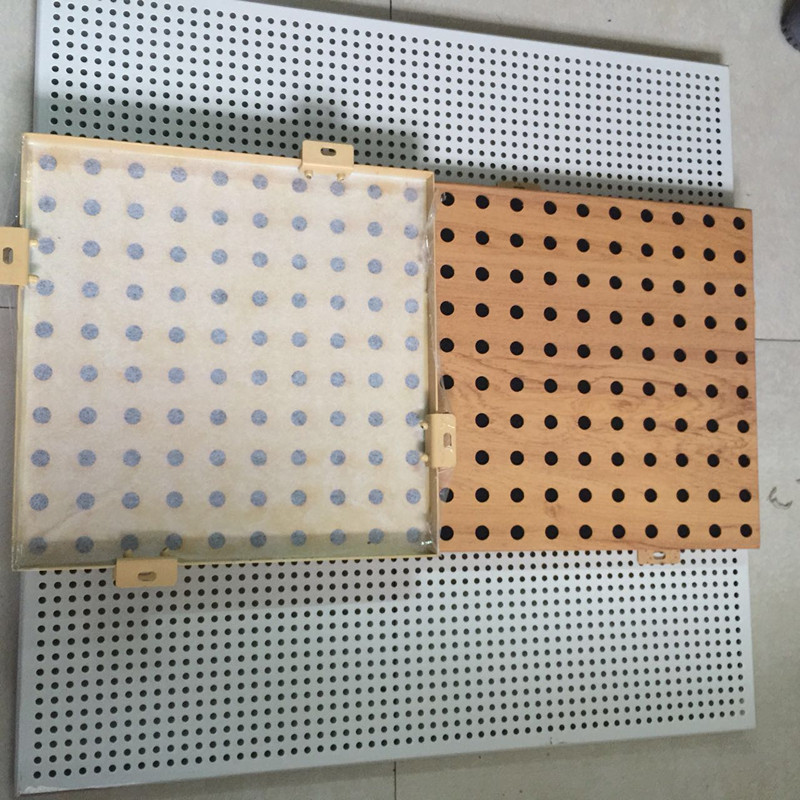

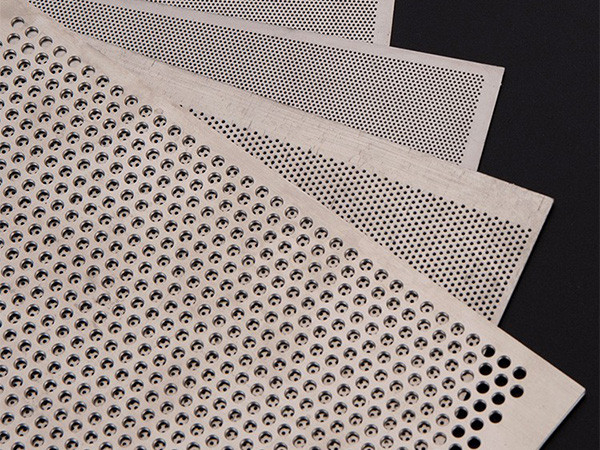

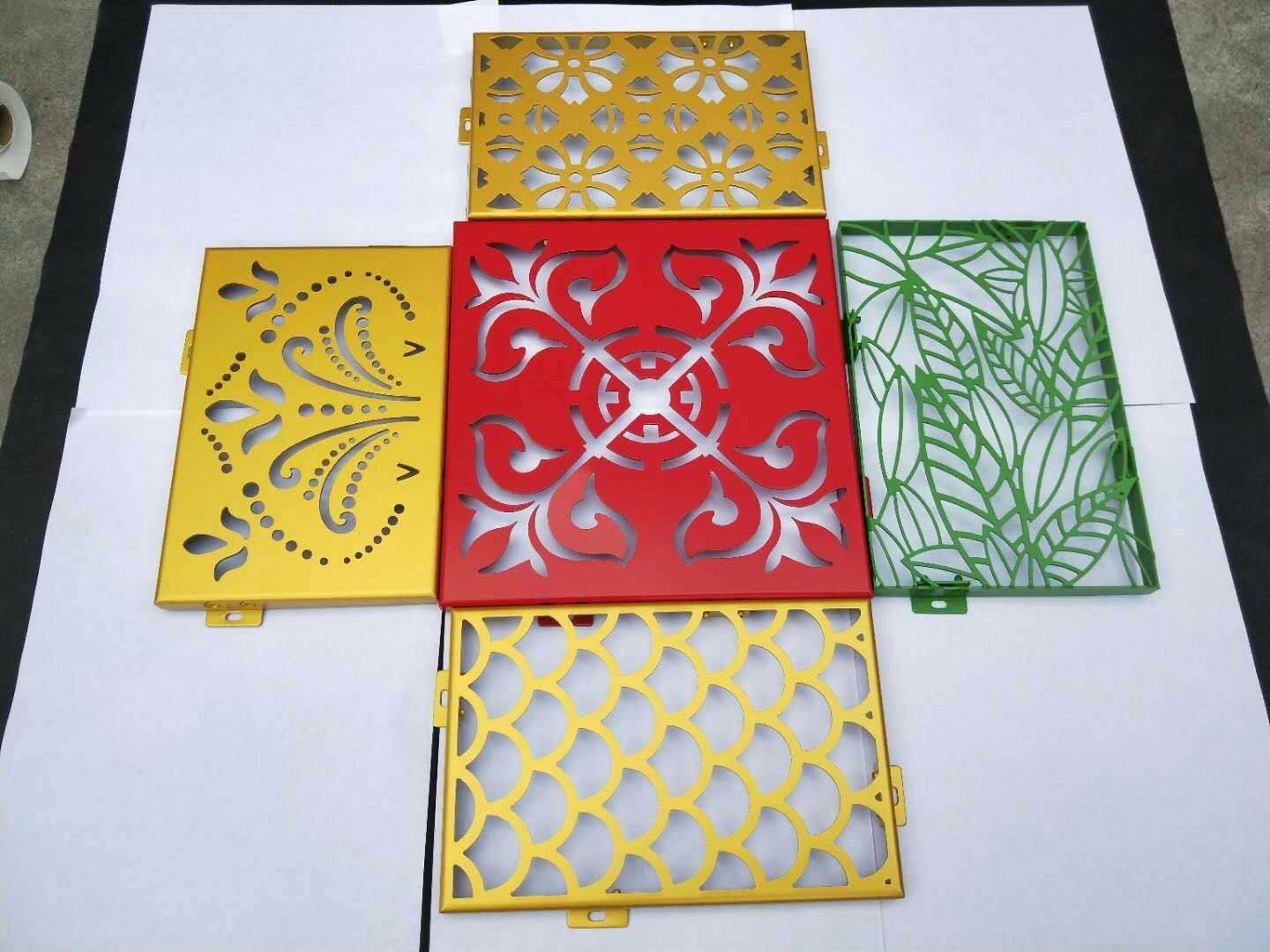

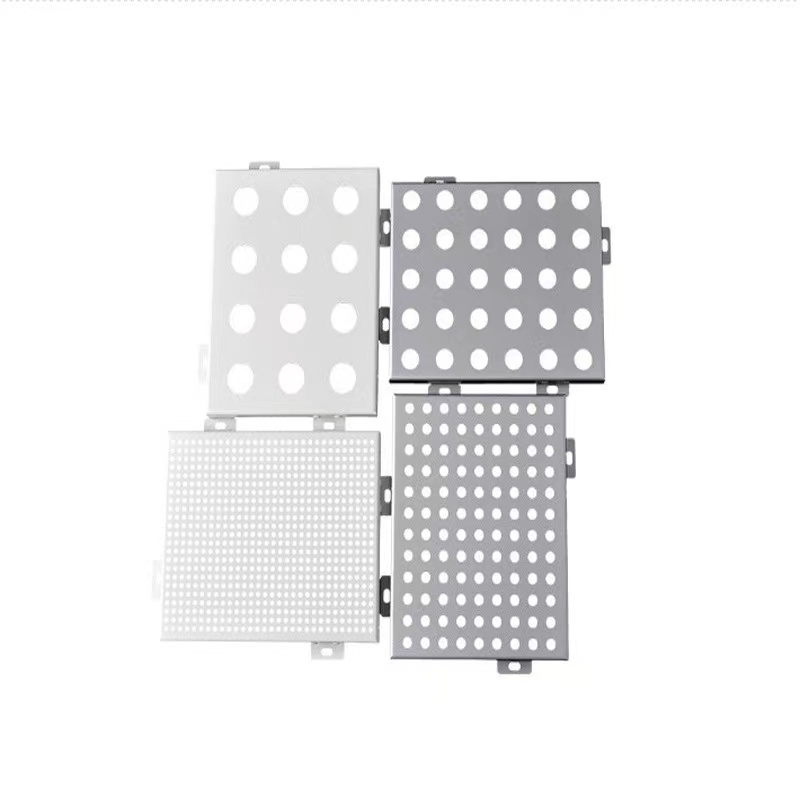

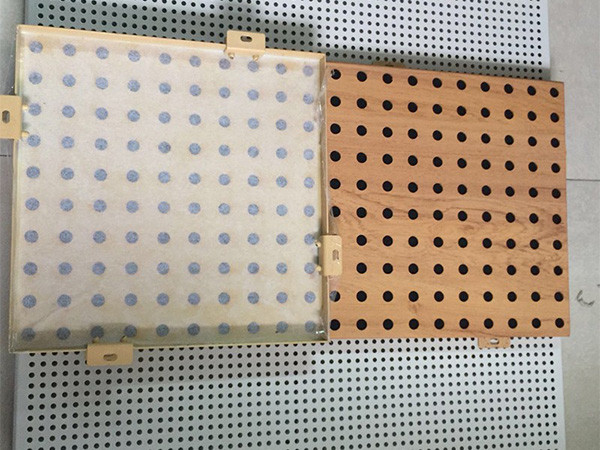

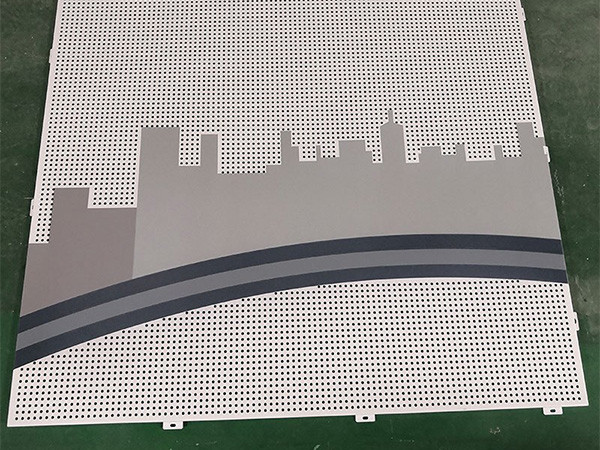

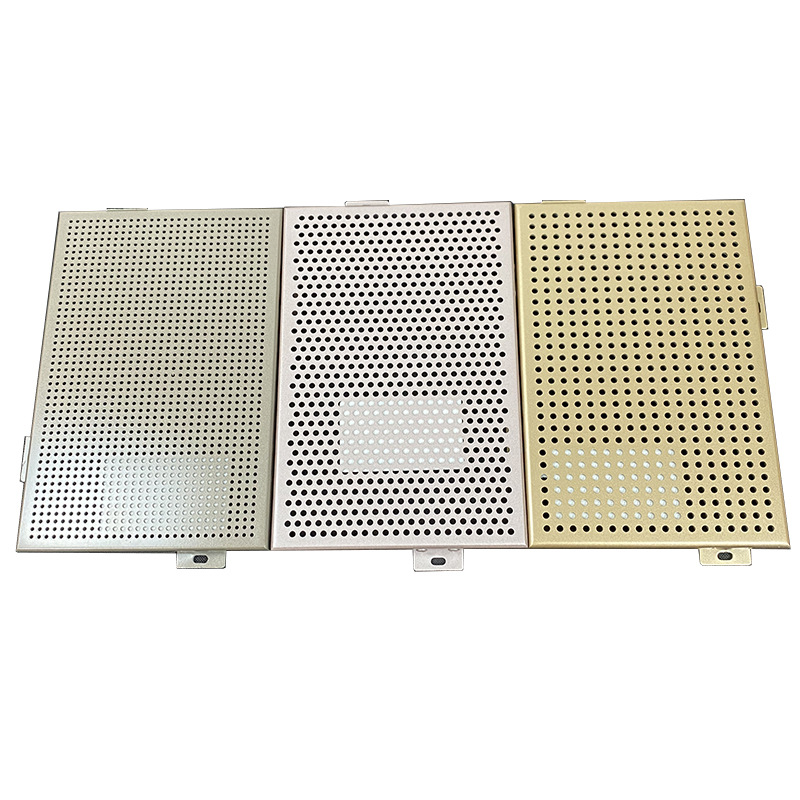

  • Solid aluminium panel is a material that is with high formability, it can be made with regular flat cassette panel, curved panel, hyperboloid panel, perforated panel or laser cut panel with different patterns. Almost any shapes or patterns needed for architectural cladding designs, can be made with solid aluminium panel. We use turret punching technology for making perforated aluminium panel, and laser cut to make customized surface patterns for aluminium panel. And the after fabrication, the panel surface is either powder coated or liquid paint sprayed to get a nice decorative color.


  • Generally we use this material for facade cladding, ceiling, interior wall clading for office building, shopping mall, airport, train station, hospital, stadium etc. The aluminium solid panel is available in thickness 2mm, 2.5mm, 3mm depending on project types and budgets.


  • Specifications of Solid Aluminium Panel

  • Panel thickness

    3mm (optional from 2mm, 2.5mm to 4mm)

    Aluminium alloy

    3003 (optional is 1100mm, 5005 etc)

    Coating technology

    Pre-finished with powder coating or liquid paint spray coating

    Coating type

    PVDF, PE

    Color options

    Metallic colors, solid colors, wooden colors, stone colors

    Shapes

    Regular flat panel, single curved panel, hyperboloid curved panel, odd shape panel

    Patterns

    Perforated or laser cut to achieve different types of designs: holes, triangle, rectangle, customized pattern

    Fabrication

    Edge folding, curving, adding brackets, bending, adding reinforcement ribs etc included


  • Key Benefits of Solid Aluminium Panel

  • Non-combustible
    Super weather proof
    In many countries, the building code has clearly specified that building cladding materials have to be non-combustile. Solid aluminium panel is a single layer panel made of full aluminium, it cannot be ignited or burnt.Panel surface is nicely pre-painted with durable PVDF outdoor grade paints or powdercoat, a 10 to 20 years outdoor color warranty is given (Ps: for indoor use we also provide PE coating as alternative). And aluminium panel itself is a stable metal that is not easy to rust.
    Quick installationUnlimited shapes achievable
    All the panels are pre-fabricated into cassettes in our workshop as per customers' shop drawing, once shipped to project site they are ready to be installed directly as per the drawing position numbers.With perforation, single curved, hyperboloid curved, laser cutting, welding & folding technology, solid aluminium panel can be made into many patterns, shapes or even 3D look.
    Unlimited color optionsFully recyclable
    Solid aluminium panel are available in unlimited metallic, solid colors as per RAL or Pantone color codes and wood, stone grains.The aluminium panel can be fully recycled when it's no longer needed. Care to mother earth is always our first concern.











Our factory view

R&D team

We have technical cooperations with 116 members of Dali Aluminium accociation and scientific research

cooperation units. we realize the effective integration of orders and resources, the full use of equipment,

and the complementary advantages of technology in order to offer variou customized solutions.26 techinical

experts insure we can offer professional pre-sales services.


ODM&OEM service

With more than 30 years expercience,we can offer many ready solutions and customized service in aluminium

profiles for large dimension curtain wall,aluminum window and door facades,aluminium fence,CNC aluminum

parts,aluminium composite panel, no matter you want to start a new aluminium business or you are already

experienced.We have a strong production control and quality control system to avoid problems before delivery.

we will control every step according to different customers during the process and delivery.

Techinical output and cooperation

If you need to improve your factory or enlarge your business ,we can help to sourcing equipments,ideas and

 technical support.We are professional to unite Chinese aluminium industry supply chain to help you.





Technical Data of Solid Aluminium Panel

Basic Information:
ItemValueTolerance
Panel Thickness3mm±0.2mm
Aluminium Alloy3003 (optional 1100 / 5005)N/A
Panel Width1220mm (or customized)±2mm
Panel Length2440mm (or customized)±4mm
Coating TypePVDF Spray Paint / Powder CoatN/A
Panel Weight8.16kgs/sq.m±5%

Chemical Composition (based on alloy 3003):
ElementActual Value
ElementActual Value
AlRestSi0.134
Fe0.489Cu0.1
Mn1.07Mg0.0058
Cr0.0039Ni0.005
Zn0.005Ti0.03

Mechanical Properties (based on alloy 3003)
PropertyTest result
Yield Strength150MPa
Tensile Strength155MPa
Elongation11.00%

Painting Dry Film Properties
PropertySub-ItemTest result
Dry Film Thickness2 coats PVDF spraying25μm (±5)
3 coats PVDF spraying40μm (±5)
Powder coating60μm (min 50)
Gloss ValueASTM D523-8920-70
Film AdhesionDrying AdhesionGrade 0
Wet AdhesionGrade 0
Boiling Water AdhesionGrade 0
Dry Film Hardness
2H
Hydrochloric Acid Resistance
No change
Mortar Resistance
No change
Solvent Resistance
No change
Abrasion Resistance
5.2L/μm
Impact Resistance
50kg·cm, no removal of film from substrate

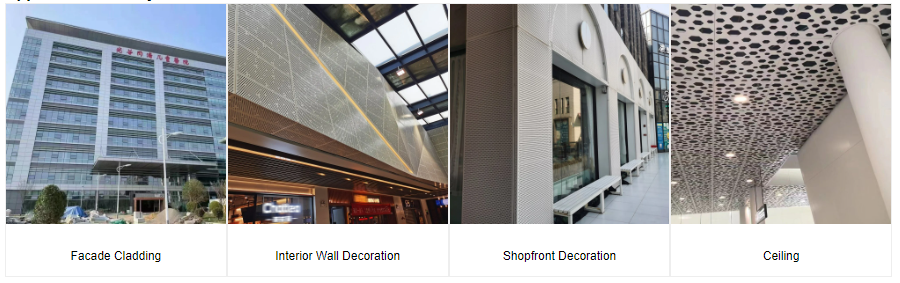

Aluminum Panels Applications & Project References
